Odoo · Warehouse management

From the receiving dock to the delivery note

Full operational control from receiving dock to delivery, inventory valuation and management reporting. ERP-integrated · Multi-warehouse · Barcode-ready · Configurable. Delivered across Canada and Lebanon.

Pallets, a storage rack, a conveyor and a sealed parcel, in sequence.

At the door

What arrived, checked against what was ordered

Receipts raised from the purchase order, so the count at the door is a comparison rather than a fresh record.

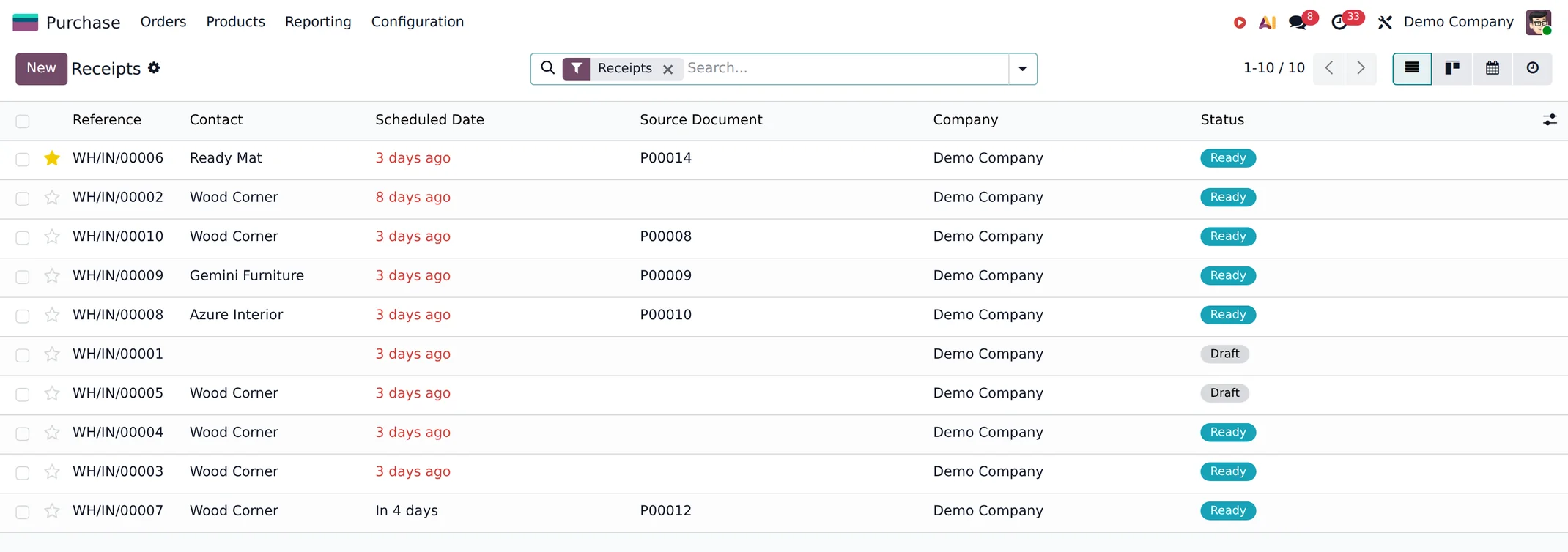

An Odoo receipts list with source documents and status.

Putaway

Every move between two locations, recorded

Putaway, resupply and relocation as movements with an operator, a location and a time against them.

Picking and dispatch

Picked, packed and evidenced

Delivery orders worked against the sale and closed on what actually left the building.

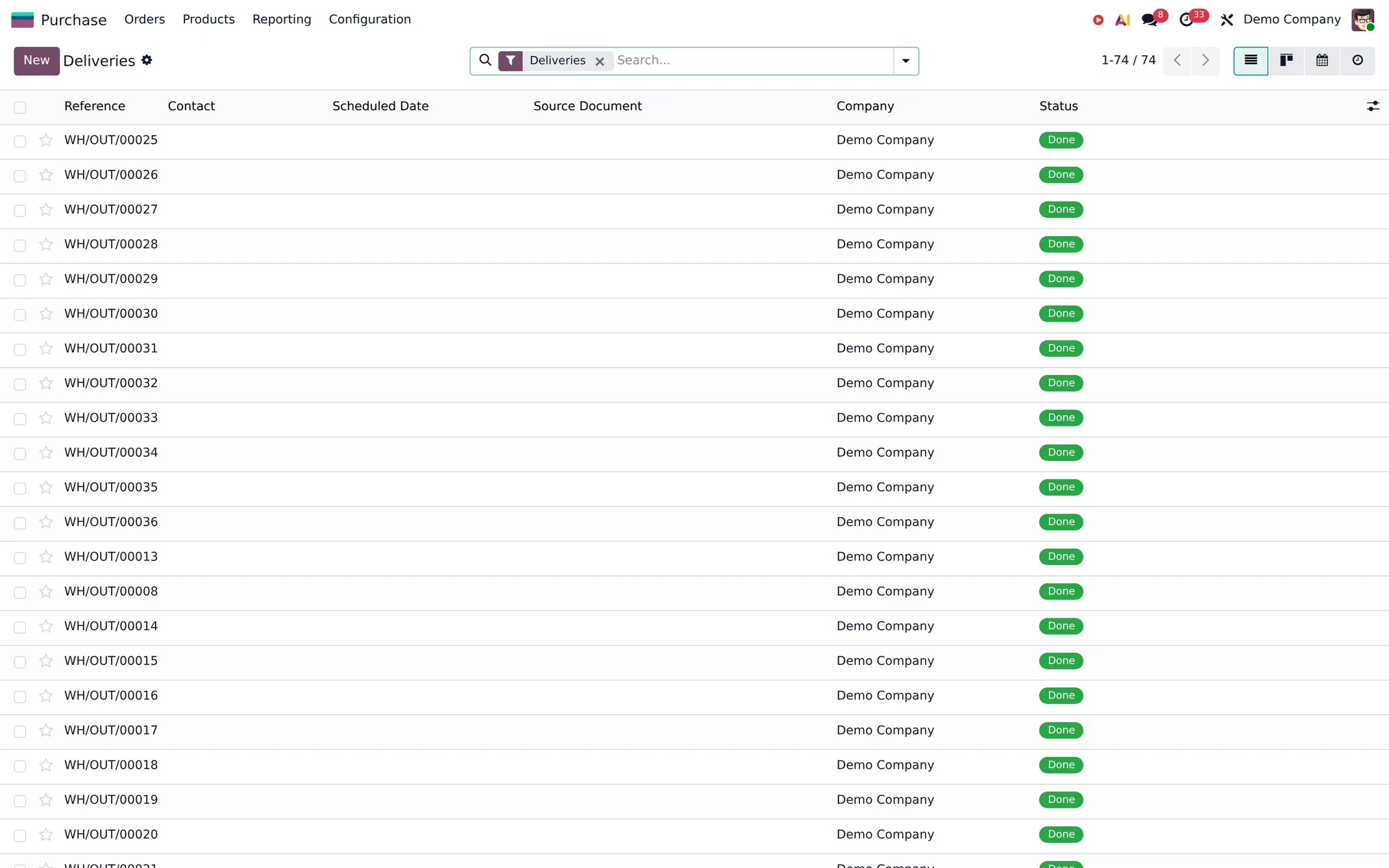

An Odoo delivery order list with references and status.

Traceability

Which lot, which package, and where it went

Lots, serials and packages carried through receipt, movement and dispatch, so a trace runs both ways.

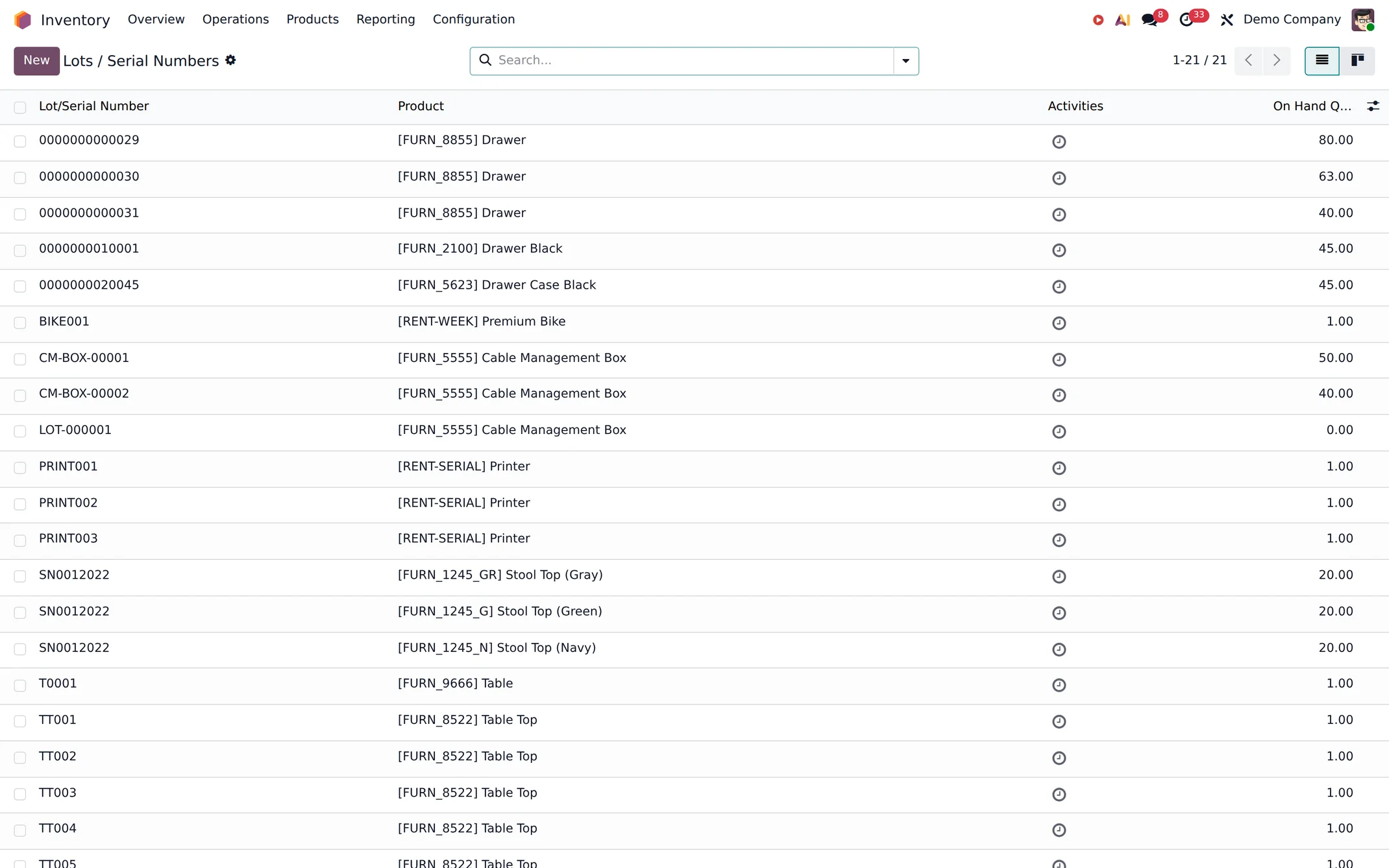

An Odoo lot and serial number list with quantities on hand.

What the solution covers

Eight areas of control

Inbound control

Expected receipts, purchase-order matching, partial receipts, backorders, quality checks and receiving exceptions.

Storage control

Warehouses, zones, aisles, shelves, bins, packages, putaway rules and internal movements.

Inventory control

On-hand, available, reserved and forecasted stock; counts, adjustments, scrap and movement history.

Replenishment

Minimum/maximum policies, demand forecasting, lead-time planning and inter-warehouse resupply.

Fulfillment

Reservation, piece, batch, wave and cluster picking; one-, two- or three-step delivery flows.

Packing and dispatch

Packages, labels, multi-package shipments, shipping handoff, backorders and delivery validation.

Traceability

Barcodes, locations, packages, lots, serial numbers, expiration dates and end-to-end history.

Financial integration

Inventory valuation, landed costs, purchase receipts, customer deliveries and accounting impact.

Warehouse lifecycle

Twelve stages, from plan to count

Twelve stages, and the twelfth returns to the first. A count closes one turn of the warehouse and sets the plan for the next, which is why this is drawn as a loop rather than a line.

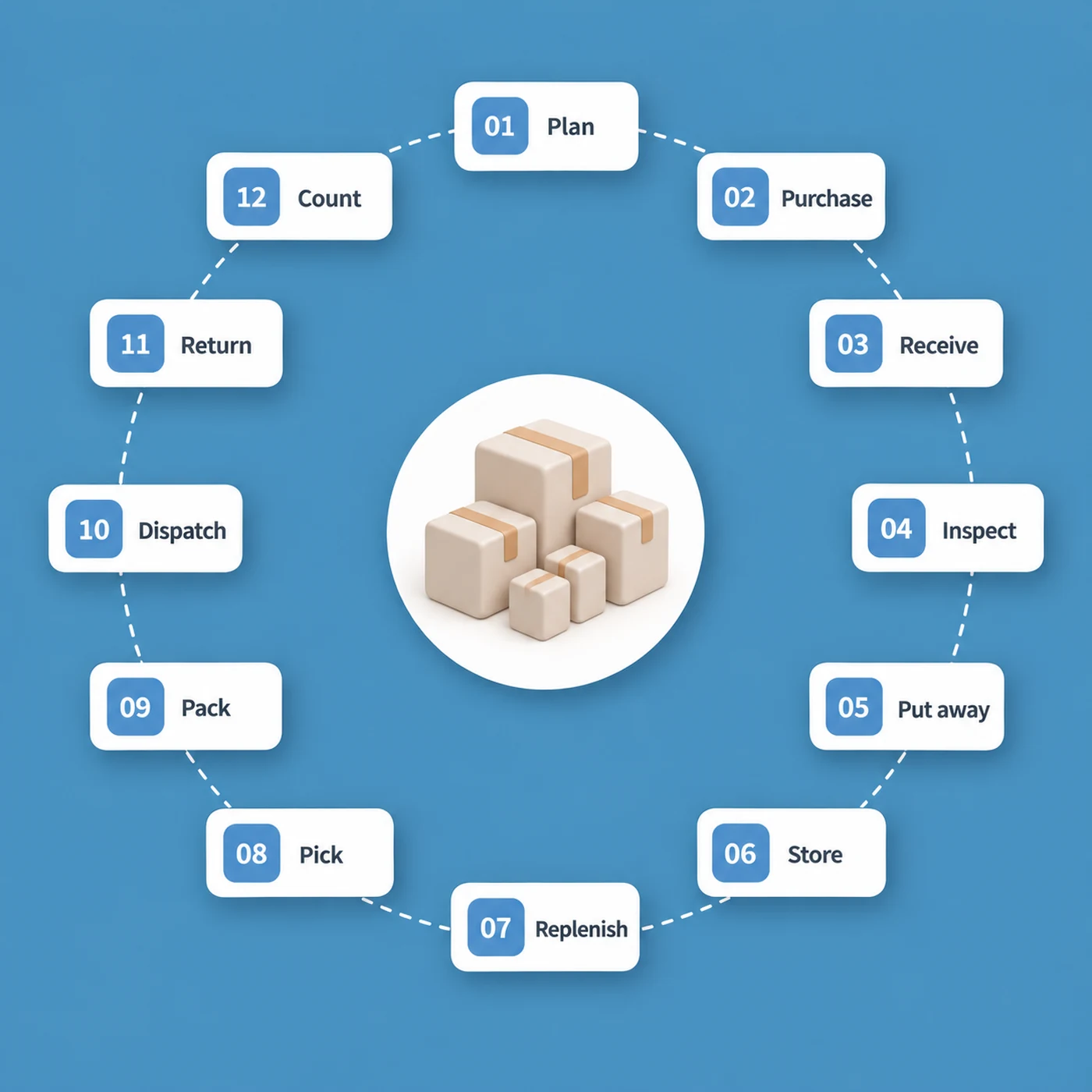

The twelve-stage warehouse lifecycle drawn as a ring: 01 Plan, 02 Purchase, 03 Receive, 04 Inspect, 05 Put away, 06 Store, 07 Replenish, 08 Pick, 09 Pack, 10 Dispatch, 11 Return, 12 Count, and Count returns to Plan.

Location hierarchy

Six levels, each inside the last

A location is not a label on a shelf. It is a company, holding a warehouse, holding a zone, holding an aisle, holding a shelf, holding a bin, and every movement names the level it happened at.

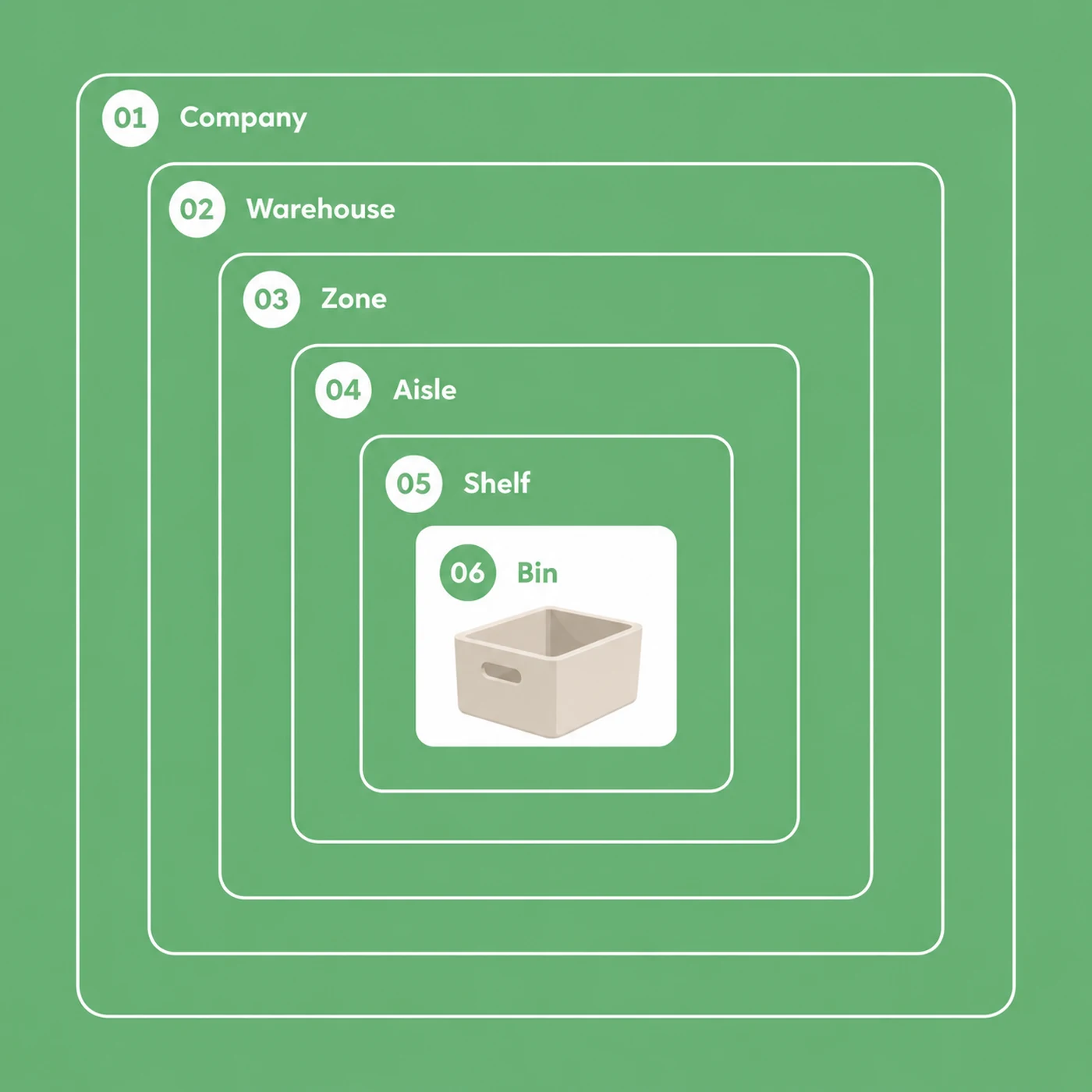

Six location levels drawn as nested frames, each contained by the one before it: 01 Company, 02 Warehouse, 03 Zone, 04 Aisle, 05 Shelf, 06 Bin.

Inbound capabilities in detail

Inbound capabilities and the control each one provides.
Capability	Detailed control
Expected receipts	Purchase orders create inbound work with expected products, quantities, dates and supplier references.
Partial receipt	Accept what arrived, keep the balance open as a backorder, or close the remaining demand according to policy.
Discrepancy handling	Record overage, shortage, substitution, damage or rejection through an approved exception path.
Barcode receiving	Scan product and location codes; capture packages, lots, serials and quantities using compatible devices.
Quality control	Where enabled, trigger instructions, pass/fail checks, measurements or photo evidence before stock is released.
Three-step receipt	For stricter control, route goods through input, quality and stock rather than directly to storage.
Cross-docking	Where the operating model requires it, route selected inbound goods toward outbound demand without long-term storage.

Putaway logic

Four kinds of rule

Product rules

Route a specific product to a designated location or storage zone.

Category rules

Apply storage behavior to groups of related products.

Package rules

Direct pallets, cartons or reusable containers according to package type.

Capacity rules

Use storage categories to limit locations by item count, weight or package capacity where configured.

The record

Every movement keeps the document behind it

Inventory

Received, put away, picked, dispatched, returned, adjusted — each one a line saying what moved, from where to where, how many and on whose instruction. It is the report that answers where the stock went, months after it went.

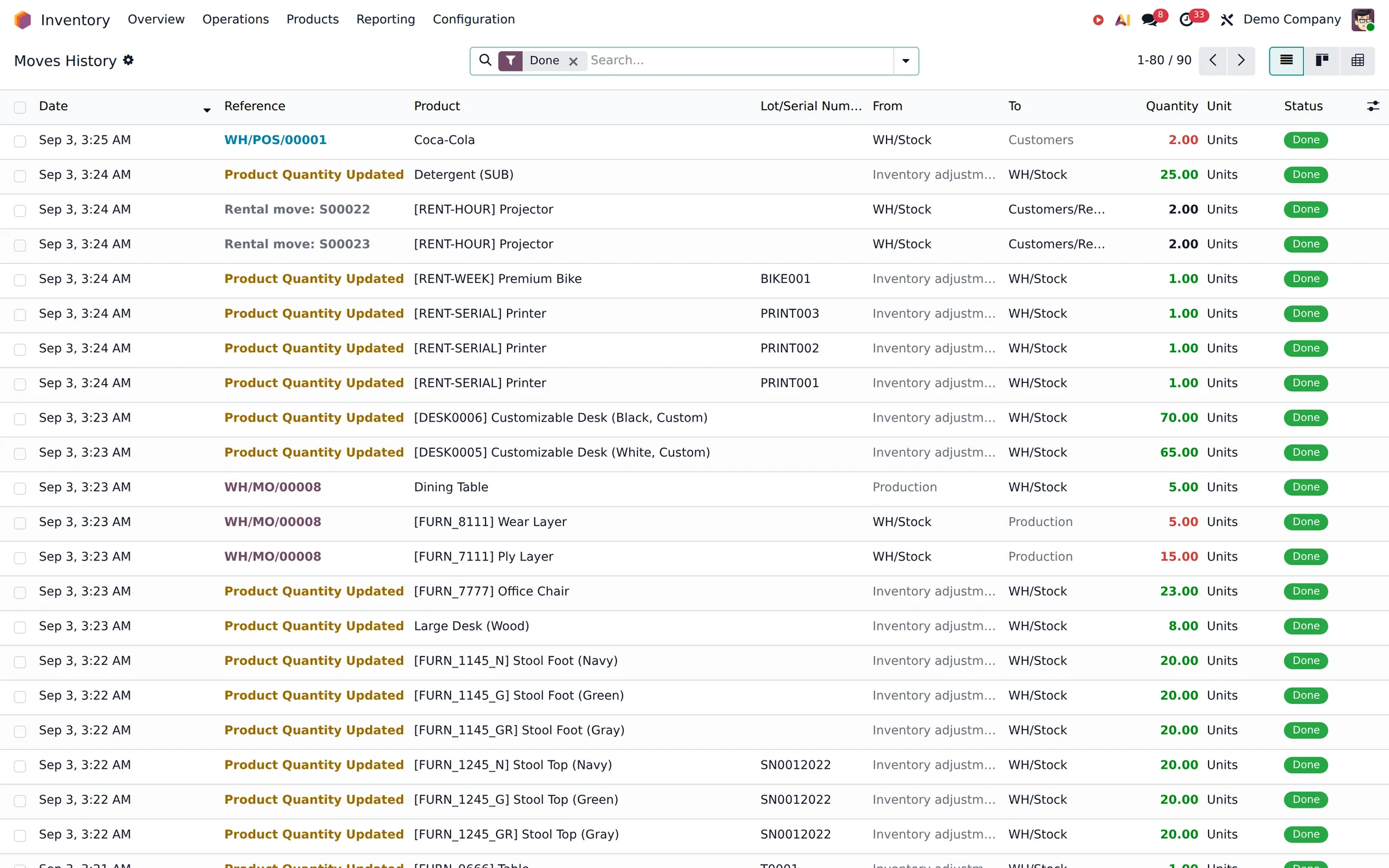

An Odoo stock moves history by date, product, source and destination.

Four picking methods

Picking methods, their operating model and when each is used.
Method	Operating model	Best used when
Piece picking	Complete one order or transfer at a time.	Volume is moderate, orders are large or exceptions are frequent.
Batch picking	One picker collects items for several orders, then sorts them at an output area.	Many orders contain a small set of frequently ordered products.
Wave picking	Split and group work by product, category, schedule, route or other operational criteria.	High-volume operations need planned release windows and team allocation.
Cluster picking	Pick multiple orders while sorting directly into designated bins or reusable packages.	Speed and immediate order separation are more important than later consolidation.

Packing and dispatch controls

Packages

Create cartons, pallets or reusable containers and record the products held inside each package.

Multi-package orders

Split one delivery across several packages without creating separate customer orders.

Packing zone

Use a dedicated validation step when the operation separates picking from packing.

Labels and carriers

Connect approved label, rate and tracking workflows where carrier integration is in scope.

Backorders

Ship available items and keep the balance open for later fulfillment.

Dispatch control

Validate the final handoff from output location to customer or carrier.

What traceability records

Traceability objects and what can be recorded and queried for each.
Traceability object	What can be recorded and queried
Lots	Group identity for received or produced quantities; useful for recalls, quality history and expiration control.
Serial numbers	Unique identity for one unit, including source, locations, movements and customer delivery.
Expiration dates	Expiration, best-before, removal and alert dates; FEFO can prioritize the nearest removal date.
Packages	Contents, location, type, weight, container relationship and movement as one unit.
Movement history	Source and destination, product, quantity, date, operator, status and source document.
Traceability report	Where a tracked unit came from, where it was stored and where or to whom it was sent.

Nine roles

Each role and its typical access and responsibility.
Role	Typical access and responsibility
Warehouse manager	Configuration oversight, work queues, exceptions, approvals, reporting and operational performance.
Receiver	Inbound scanning, quantity confirmation, lot/serial capture and discrepancy escalation.
Inventory controller	Counts, adjustments, relocations, stock investigations and accuracy reporting.
Picker	Assigned picking work, source and product verification, short-pick and backorder handling.
Packer / dispatcher	Package creation, final verification, labels, output staging and delivery validation.
Procurement	Expected receipts, supplier follow-up, replenishment demand and vendor returns.
Sales / service	Availability, reservation and delivery status without unrestricted warehouse control.
Finance	Valuation, landed costs, stock-accounting review and reconciliation.
System administrator	Users, permissions, integrations, configuration and controlled master-data changes.

KPI dashboard candidates

What a warehouse dashboard can measure

Definitions only. These are measurement candidates agreed during discovery, not published results.

Inventory accuracy

System quantity compared with approved physical count.

Dock-to-stock time

Arrival or receipt start to final putaway completion.

Pick accuracy

Correct picked lines or units compared with total picked.

Order cycle time

Order release to dispatch or delivery validation.

Fill rate

Quantity fulfilled on the first shipment compared with quantity ordered.

On-time dispatch

Orders completed by their committed warehouse deadline.

Backorder rate

Orders or lines that could not be fully fulfilled as planned.

Stock aging / expiry

Quantity and value approaching obsolescence or removal date.

Inventory turnover

Cost or volume issued relative to average stock held.

Adjustment / shrinkage

Value and quantity changed through counts, damage, loss or unexplained variance.

Delivery stages

Eight stages to go live

Discovery through to the first live day, in the order they happen. The stages before configuration are the ones that decide whether the rest of it works.

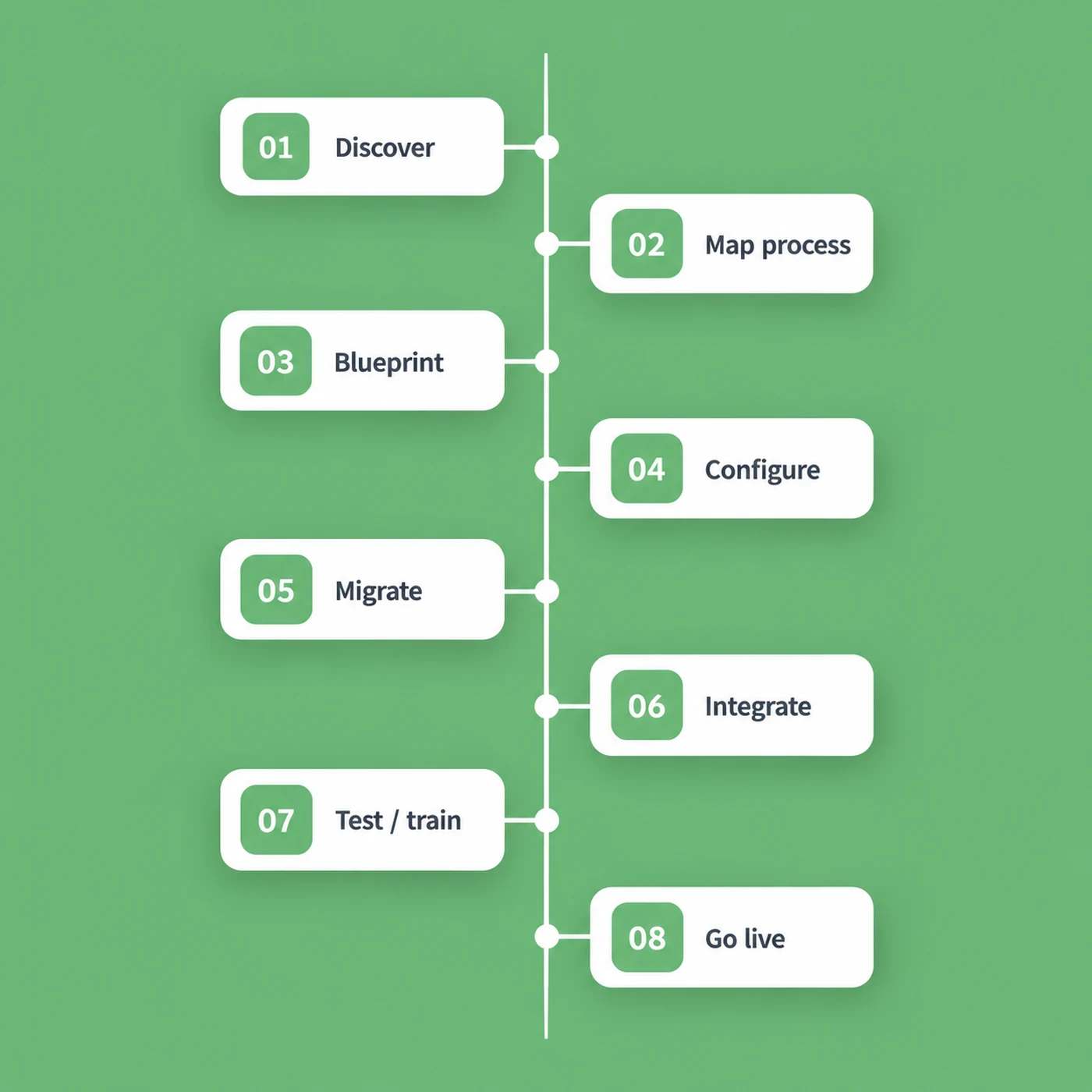

Eight delivery stages on a timeline: 01 Discover, 02 Map process, 03 Blueprint, 04 Configure, 05 Migrate, 06 Integrate, 07 Test / train, 08 Go live.

Solution levels

Three levels of engagement

Solution levels, their typical scope and who each is designed for.
Level	Typical scope	Designed for
Core inventory	Products, one warehouse, receipts, deliveries, locations, transfers, counts and standard reporting.	Operations moving from spreadsheets or disconnected stock records.
Advanced WMS	Multi-warehouse, barcode, multi-step flows, putaway, lots/serials, packages, replenishment, advanced picking and traceability.	Growing or high-control warehouse operations.
Connected operations	Purchasing, sales, accounting, POS, manufacturing, apps, carrier and device integrations, custom reports and workflows.	Organizations seeking one operational ecosystem.

Connected operating modules

What each module contributes

How each connected module relates to the warehouse, and what it changes operationally.
Module	Warehouse connection	Operational result
Purchasing	Purchase orders create expected receipts and supplier-linked inbound work.	Receiving teams know what is due, what arrived and what remains open.
Sales	Confirmed demand can reserve stock and generate delivery operations.	Commercial commitments are connected to physical availability.
Accounting	Validated movements can feed valuation, cost of goods and landed-cost allocation.	Finance sees the value and impact of warehouse activity.
POS / channels	Store and channel transactions share product and stock information.	Fewer disconnected stock balances across branches and channels.
Apps / integrations	Mobile workflows, scanners, carriers, scales or partner systems connect through approved interfaces.	Operators work in the right interface without duplicating data.

What changes

Four things the floor stops doing

Working from two figures

The floor, the order desk and the ledger read one stock.

Losing the trail

Every movement keeps the document that caused it.

Guessing where it is

A location is a place in the building, not a memory.

Trusting rather than checking

What arrived is measured against what was ordered.

Start with the operation, not the software.

Discovery maps the real warehouse — layout, product types, order volume, traceability requirements, people and controls — before any configuration decision is made.
